A Complete Guide Of MCB

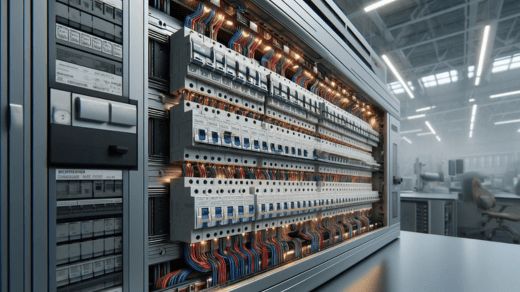

Miniature circuit breakers are electrical switches that instantly cut off the power supply in the event of an overload or malfunctioning network condition. Nowadays, an MCB replaces a fuse in low-voltage electrical networks. The miniature circuit breaker detects it more reliably than the fuse might. Eshop MCB is far more over-current-sensitive than a fuse. Modular switchboard with MCB offers customisable configurations, providing tailored solutions for diverse electrical distribution needs. In this article, we will briefly discuss MCB.

The inside of a miniature circuit breaker

●      Main contacts:

The contacts that transport the load current are associated with the circuit’s incoming and outgoing wires.

●      Trip Unit:

The central part of an MCB monitors the current passing through the circuit and trips the breaker should an overcurrent or short-circuit occur.

●      Terminal:

Terminal links the wires that come in and go out.

●      Housing:

The housing is the protective casing of the MCB components that also acts as insulation between live and other electrical components.

●      Trip Indicator:

Whether an MCB is “on” or “off” is usually shown visually by Trip Indicator.

●      Auxiliary contacts:

Auxiliary loads and signalling functions can be switched using the extra contacts on some MCBs.

●      Trip spring:

This spring mechanism holds the MCB contacts “on.” The contacts can separate and break the circuit when the trip unit functions because the trip spring is released.

Working Principle of MCB

An MCB is a reasonably straightforward device that is seldom ever repaired. Its proper operation is the responsibility of the trip unit, which is its major component. The bimetallic strip heats and bends to deflect whenever a continuous overcurrent passes through an MCB. This bimetallic strip deflection opens a mechanical latch. The tiny circuit breaker contacts are opened by this mechanical latch when it is fastened to the operating mechanism, and the MCB shuts off, therefore halting the electricity from flowing through the circuit. One must manually turn on the MCB to resume the current flow.This system guards against short circuits and overloads as well as overcurrent.

But in short circuit situations, the current surges sharply, electromechanically dislocating the plunger connected to a solenoid or tripping coil. As the plunger hits the trip lever, the latch mechanism releases instantly, opening the circuit breaker contacts. This covered the essential operation of a miniature circuit breaker. The working principle of a plug-in MCB involves tripping when detecting an overload or short circuit.

An electromagnet protects against electric short-circuit current, and a bimetal offers overload current protection. Before testing the circuit, be sure to plug in the MCB.

Conclusion Ensuring safety and preventing damage to electrical circuits need careful selection of the MCB. Modular switchboards with MCB can be set up in various ways, making them ideal for multiple electrical distribution needs. Using the ultimate MCB selection chart and considering things like load, kind of load, etc., you can choose the Eshop best MCB for your purposes. For electrical safety, plug-in MCB. To know more, please visit this website.
